DC202-2CH Dashcam 4K
269 – 329 ,-
The DC202-2CH records in 4K Ultra HD (30fps). This ensures clear recordings in all lighting conditions.
4K UHD @ 30FPS WiFi 5GHz + Bluetooth BLE 4.2 Built-in GPS + Impact sensor With voice control & -guidance- Description
—
Important features
—
Important features
Front and rear camera
4K UHD @ 30FPS
WiFi 5GHz
Built-in GPS
Advanced parking mode options
Excellent day/night visibility
Impact detection
Time-lapse recording
—
Nordväl DC202-2CH
The DC202-2CH is a stylish and compact dual dashcam with all the necessary functions on board including front and rear recording, WiFi (5GHz), built-in GPS, advanced parking mode options, time-lapse recording and much more.
Thanks to the 4K front camera (3840p) and the 2K rear camera (2560p), you can now record all your rides day and night in stunning quality.
—
Nordväl DC202-2CH
The DC202-2CH is a stylish and compact dual dashcam with all the necessary functions on board including front and rear recording, WiFi (5GHz), built-in GPS, advanced parking mode options, time-lapse recording and much more.
Thanks to the 4K front camera (3840p) and the 2K rear camera (2560p), you can now record all your rides day and night in stunning quality.
—
Discover the Nordväl DC202-2CH
—
Dashcam comparison
—
Up to 5K video resolution
If you use the front and rear cameras of the DC202-2CH, the front dashcam can record up to 4K (3840p) and the rear camera up to 2K (2048p) video resolution.
If you only use the front camera, the dashcam can record up to 5K (5120p) video resolution.
—
Up to 5K video resolution
If you use the front and rear cameras of the DC202-2CH, the front dashcam can record up to 4K (3840p) and the rear camera up to 2K (2048p) video resolution.
If you only use the front camera, the dashcam can record up to 5K (5120p) video resolution.
—
Fast WiFi 5GHz + Bluetooth 4.2
Thanks to the built-in WiFi, you can quickly and easily connect to the DC202-2CH and all recordings can be viewed via your smartphone or tablet. The images can be easily saved or shared via the app. You can also change the settings, view live images and much more.
—
Fast WiFi 5GHz + Bluetooth 4.2
Thanks to the built-in WiFi, you can quickly and easily connect to the DC202-2CH and all recordings can be viewed via your smartphone or tablet. The images can be easily saved or shared via the app. You can also change the settings, view live images and much more.
—
Impact detection
With the built-in impact detection (G-sensor), the dashcam ‘feels’ when you have a collision, have to brake hard, have to swerve for another driver, and so on. Using the built-in G-sensor, the dashcam makes recordings that are safely stored. These recordings are therefore not overwritten by the normal recordings and can be found very easily.
—
Impact detection
With the built-in impact detection (G-sensor), the dashcam ‘feels’ when you have a collision, have to brake hard, have to swerve for another driver, and so on. Using the built-in G-sensor, the dashcam makes recordings that are safely stored. These recordings are therefore not overwritten by the normal recordings and can be found very easily.
—
Voice control
The DC202-2CH supports voice control. Keep your focus on the road and command the dashcam using your voice.
Voice control can be turned off via the app if desired.
—
Voice guidance
The DC202-2CH also supports voice guidance. The dashcam lets you know when important things happen.
Voice guidance can be turned off via the app if desired.
—
Voice control
The DC202-2CH supports voice control. Keep your focus on the road and command the dashcam using your voice.
Voice control can be turned off via the app if desired.
—
Voice guidance
The DC202-2CH also supports voice guidance. The dashcam lets you know when important things happen.
Voice guidance can be turned off via the app if desired.
—
Parking modes
Note: in order to use the parking mode, you must connect the dashcam with the optional Nordväl Power Kit USB-C.
—
Event recording LED warning
As soon as the G-sensor is activated by a collision, by hard braking or by evading another driver, the dashcam will indicate this by means of a ‘siren’. The LEDs on the dashcam will then flash red and blue alternately. You then know immediately that an event recording is being made and that it is stored securely.
—
Event recording LED warning
As soon as the G-sensor is activated by a collision, by hard braking or by evading another driver, the dashcam will indicate this by means of a ‘siren’. The LEDs on the dashcam will then flash red and blue alternately. You then know immediately that an event recording is being made and that it is stored securely.
—
Image settings rear camera
In the settings of the app you can choose to mirror (horizontally) and/or flip (vertically) the recordings from the rear camera, so that you always get the perfect image the way you want it, for example if you want the images from the rear camera exactly as you would look in the rearview mirror.
—
Image settings rear camera
In the settings of the app you can choose to mirror (horizontally) and/or flip (vertically) the recordings from the rear camera, so that you always get the perfect image the way you want it, for example if you want the images from the rear camera exactly as you would look in the rearview mirror.
—

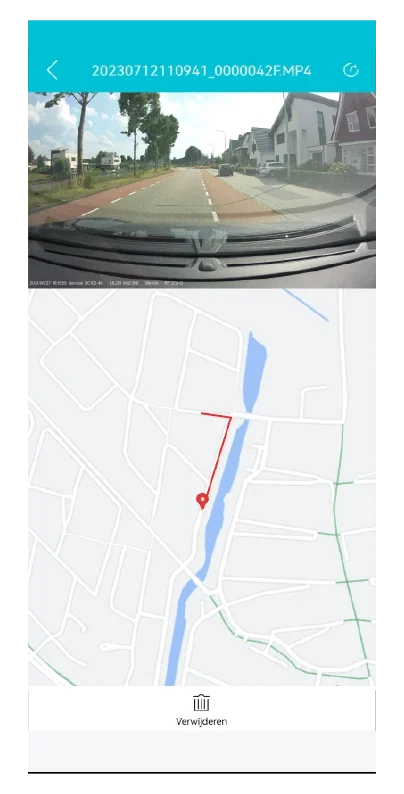

Play back videos including GPS location in the app
It is possible to view images of the dashcam recorded on the computer with GPS location, but it is now also possible to view these images in the app, including GPS location. Watch how it works in the video below.
—
Front 140˚ + rear 135˚ wide-angle lens
On both sides, the camera has a wide-angle lens with wide viewing angles of 140° degrees at the front and 135° degrees at the rear. This way you don’t have to miss any unexpected moments on the road.
—
Front 140˚ + rear 135˚ wide-angle lens
On both sides, the camera has a wide-angle lens with wide viewing angles of 140° degrees at the front and 135° degrees at the rear. This way you don’t have to miss any unexpected moments on the road.
—
H.265 HEVC video compression
All recordings are saved with the H.265 HEVC (High Efficiency Video Coding). This video encoding ensures that the recordings are compressed, but retain the 4K 3840P recording quality.
—
H.265 HEVC video compression
All recordings are saved with the H.265 HEVC (High Efficiency Video Coding). This video encoding ensures that the recordings are compressed, but retain the 4K 3840P recording quality.
—

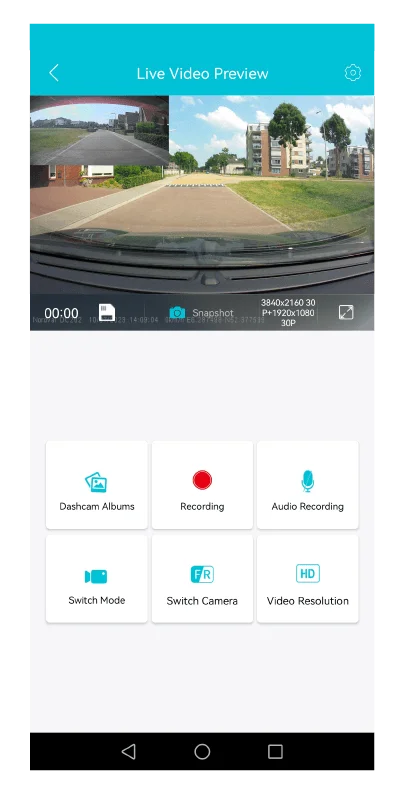

Discover the app
The companion app is packed with useful features. In the app you can, among other things, adjust all settings on the dashcam, switch functions on and off, view recordings stored on the SD card, save recordings on your phone, view recordings including GPS location and much more.
—
Discover the app
The companion app is packed with useful features. In the app you can, among other things, adjust all settings on the dashcam, switch functions on and off, view recordings stored on the SD card, save recordings on your phone, view recordings including GPS location and much more.
—
What's in the box?
Nordväl DC202-2CH front and rear camera
Micro SD card

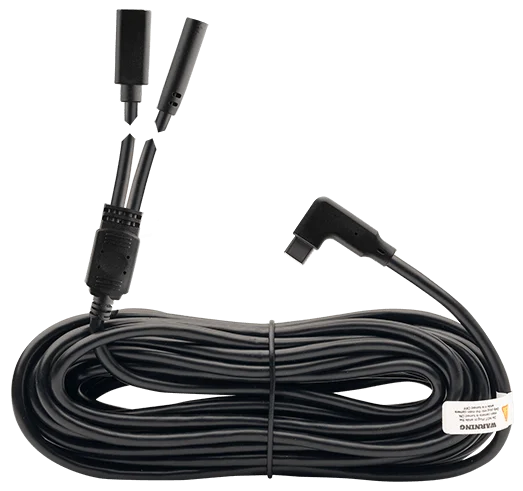

USB-C power cable (3,5m) + USB car charger
AV cable rear camera (6m)
Electrostatic foil
5x Cable clips + pry tool
Extra tapes
User manual in EN
—
What's in the box?
Nordväl DC202-2CH front and rear camera
Micro SD card
USB-C power cable (3,5m) + USB car charger
AV cable rear camera (6m)
Electrostatic foil
5x Cable clips + pry tool
Extra tapes
User manual in EN
| Product name | Nordväl DC202-2CH |
| Color / Size / Weight | Front camera: black / 11,3 x 3,5 x 3,4cm / 157g Rear camera: black / 5,4 x 2,9 x 2,7cm / 24g |
| SD card | Micro SD, class 10 or higher, up to 256GB |
| Recording modes | Normal, Time Lapse*, Collision Detection*, Motion Detection* *These are parking modes and require the optional Nordväl Power Kit USB-C to be used. |
| Video resolution | Front & Rear 4K 3840×2160 @ 30FPS + Full HD 1920×1080 @ 30FPS 4K 3840×2160 @ 30FPS + 2K 2560×2160 @ 25FPS 2K 2560×1440 @ 30FPS + Full HD 1920×1080 @ 30FPS Full HD 1920×1080 @ 30FPS + Full HD 1920×1080 @ 30FPS Front only 5K 5120×2160 @ 25FPS 4K 3840×2160 @ 30FPS 2K 2560×1440 @ 30FPS Full HD 1920×1080 @30FPS |
| Viewing angle | Front camera: 140º wide angle lens Rear camera: 135º wide angles lens |
| Video codec | H.265 |
| Video file format | MP4 |
| Photo file format | JPG |
| GPS | Built-in, playback in app or PC with GPS video player |
| WiFi | Built-in, 5GHz |
| Bluetooth | Built-in, BLE 4.2 |
| Microphone / speaker | Yes / yes |
| Power consumption | 5V 2,5A |
| USB-C poort | Built-in |
| Time & date setting | Yes |
| Loop recording | Yes |
| Input | 12V-24V cigarette charger / Power Kit USB-C |
| Battery | Built-in super capacitor |
| Operating temperature | -20ºC to 70ºC |
| Length USB-C cable | 3,5 meters |
| Warranty | 2 years |
| Memory | Quality | Recording duration |
|---|---|---|
| 128GB | Highest (Extreme) | 3 hours 40 minutes |
| Highest | 4 hours 20 minutes | |
| High | 4 hours 50 minutes | |
| Normal | 6 hours 10 minutes | |
| 256GB | Highest (Extreme) | 7 hours 20 minutes |
| Highest | 8 hours 40 minutes | |
| High | 9 hours 40 minutes | |
| Normal | 12 hours 20 minutes |
Update the latest firmware on your dashcam
Click here to download the latest firmware update of the DC202-2CH. With this latest firmware update, an extra parking mode option has been added to the app. With this function, the dashcam can also continue recording in parking mode, without the need for an additional PMP hardwire cable.
How do I install the latest firmware?
1. Download the firmware by clicking the button above.
2. Place this file on an empty SD card.
3. Insert the SD card into your DC202-2CH.
4. The dashcam will update and restart automatically.
How does it work?
A new “Timelapse parking mode” function has now been added to the app. As soon as you enable this function, the dashcam automatically goes into parking mode when you stand still with the vehicle for 3 minutes or longer.
After the dashcam starts moving again while driving away form parking position, it will automatically continue recording in continuous mode.
The dashcam still records ‘event’ recordings as soon as the G-sensor is activated by vibration or impact.
The dashcam does not record or suddenly stops recording.
Check the power supply and/or format the SD card in the camera or a computer.
How do I format the SD card and reset the camera?
To format the SD card, open the app and connect the dascham (if necessary). Go to
“DC202” Stop recording first and then click on “settings” in the upper right corner.
Then click on “Format” to format the SD card.
To reset the camera, press and hold the function button for 10 seconds to set the
dashcam to default settings.
I cannot find the dashcam in my WiFi settings.
When your dashcam is connected to your car, start your engine. The dashcam will now
also turn on. Make sure that you have WiFi, GPS and Bluetooth enabled on your phone.
The WiFi disconnects automatically.
When you are connected to the dashcam via WiFi, it will automatically turn off after a
few minutes (when there is no app activity).
There are horizontal stripes in the recording.
Open the app and go to “settings” in the upper right corner and adjust the
frequency based on the power supply (60Hz or 50Hz).
My dashcam does not record in parking mode.
Check whether the parking mode is set correctly, or let an authorized installer check the
physical installation.
How can I change the WiFi password?
Open the app and go to “settings” in the upper right. In the menu, choose “WiFi”.
Here you can view and/or change the WiFi data.
I forgot the WiFi password
If you forgot your WiFi password, you can format the dashcam and reset it to factory
settings. The password will then reset to the default password: “12345678”.
Important: Save important recordings before formatting the SD card.
My recordings are blurry.
Remove the protective lens film and clean the lens with (preferably) a lens cloth. Also,
make sure the windshield is clean and clear of grease and dirt.
My recordings have no sound.
Open the app and go to “settings” in the upper right corner and ensure that the
“Record Audio” setting is turned on or use the function button on the dashcam by
pressing it once. Please note that the Time-Lapse videos recorded in parking mode do
not include audio.
My camera automatically turns on and off.
Make sure that the output current can reach 5V / 2.5A and use the included car charger.
My camera gets hot.
Due to the camera continuously recording at high speed, the dashcam may be hot
during use. The camera has an overheating protection at 70° Celsius.
Video files cannot be played on my computer.
The video files from the dashcam are in MP4 format and may not be compatible with
your PC if suitable playback software is not installed. Make sure you have installed the
right codecs and software.
My dashcam keeps saying “Memory card error”.
Using unqualified SD or third-party cards can affect the dashcam’s performance and in
some cases, force the dashcam to reboot randomly during recording. Use the official SD
card and/or try formatting it in the app.
—
Manuals
—
Manual EN
—
Handleiding NL
—
Handbuch DE
—
Manuel FR
—
Apps
—
iOS App
—
Android App
—
Software
—
Firmware updates
How do I install the latest firmware?
- Download the firmware by clicking the button above.
- Place the file on an empty SD card.
- Insert the SD card into your DC202-2CH.
- The dashcam will update and restart automatically.
